10-panel, 4.7kWp solar PV installation in Thame
Energy On 24 completed solar PV installation in Thame, Oxfordshire in September 2026.

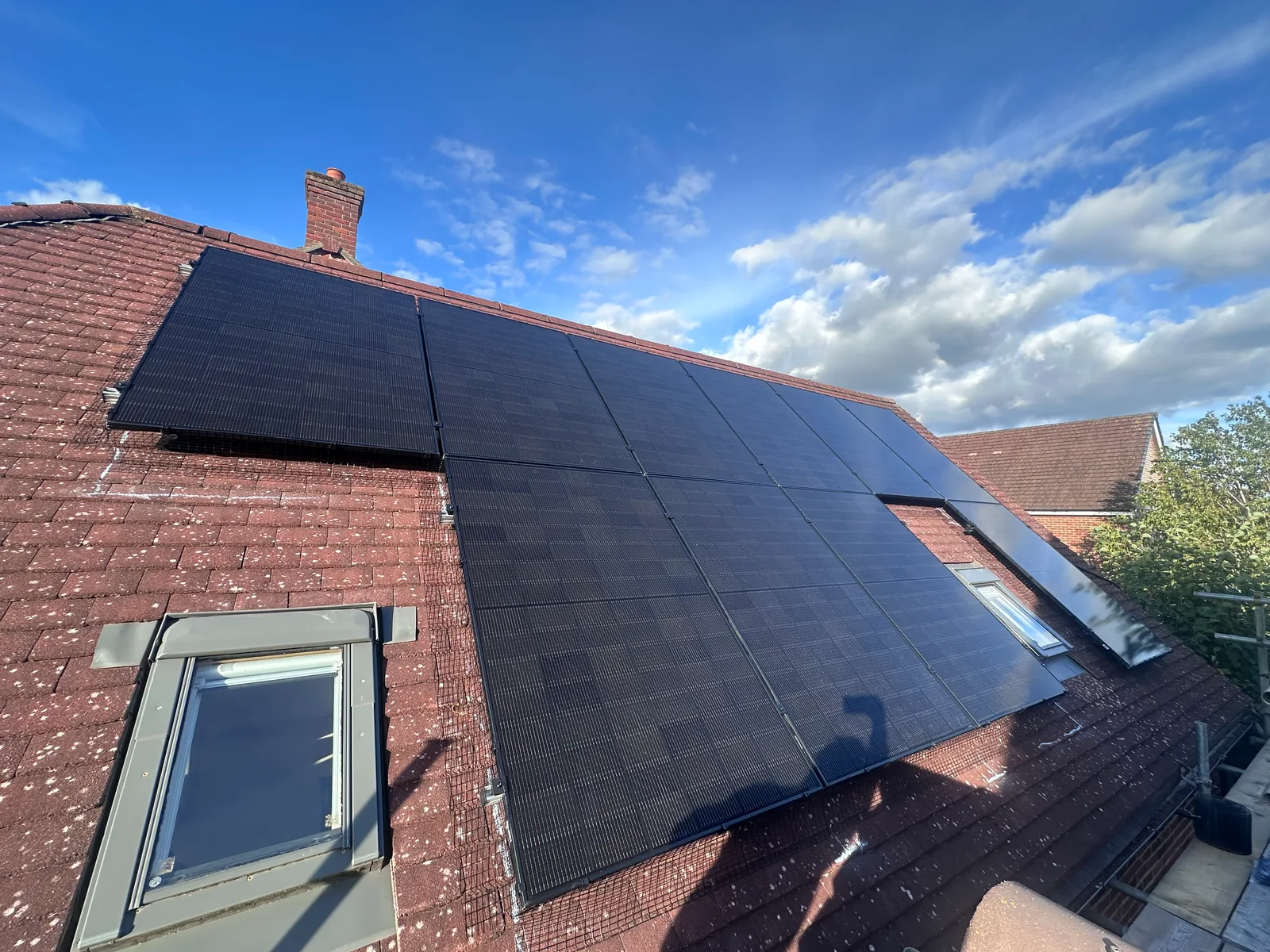

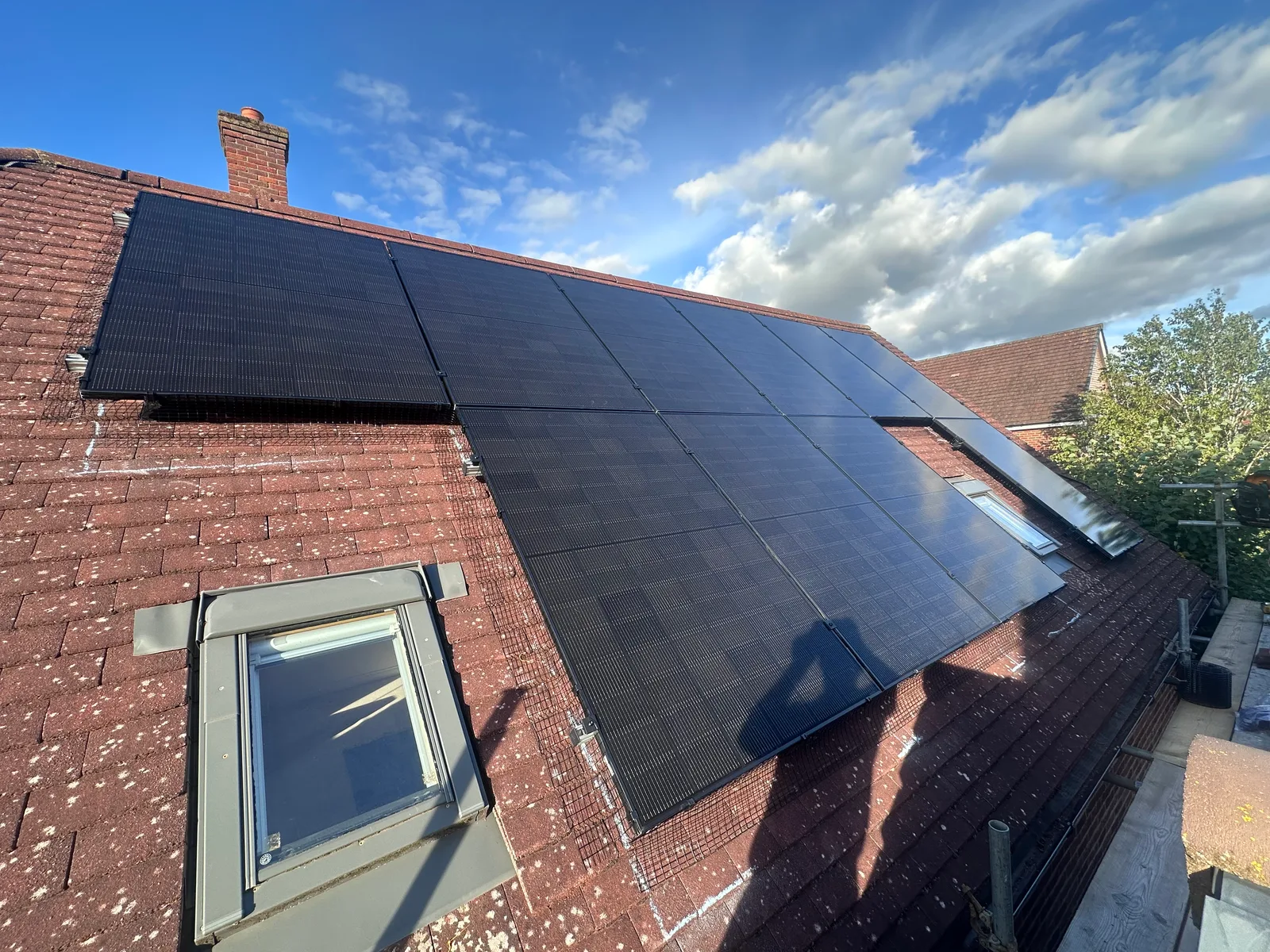

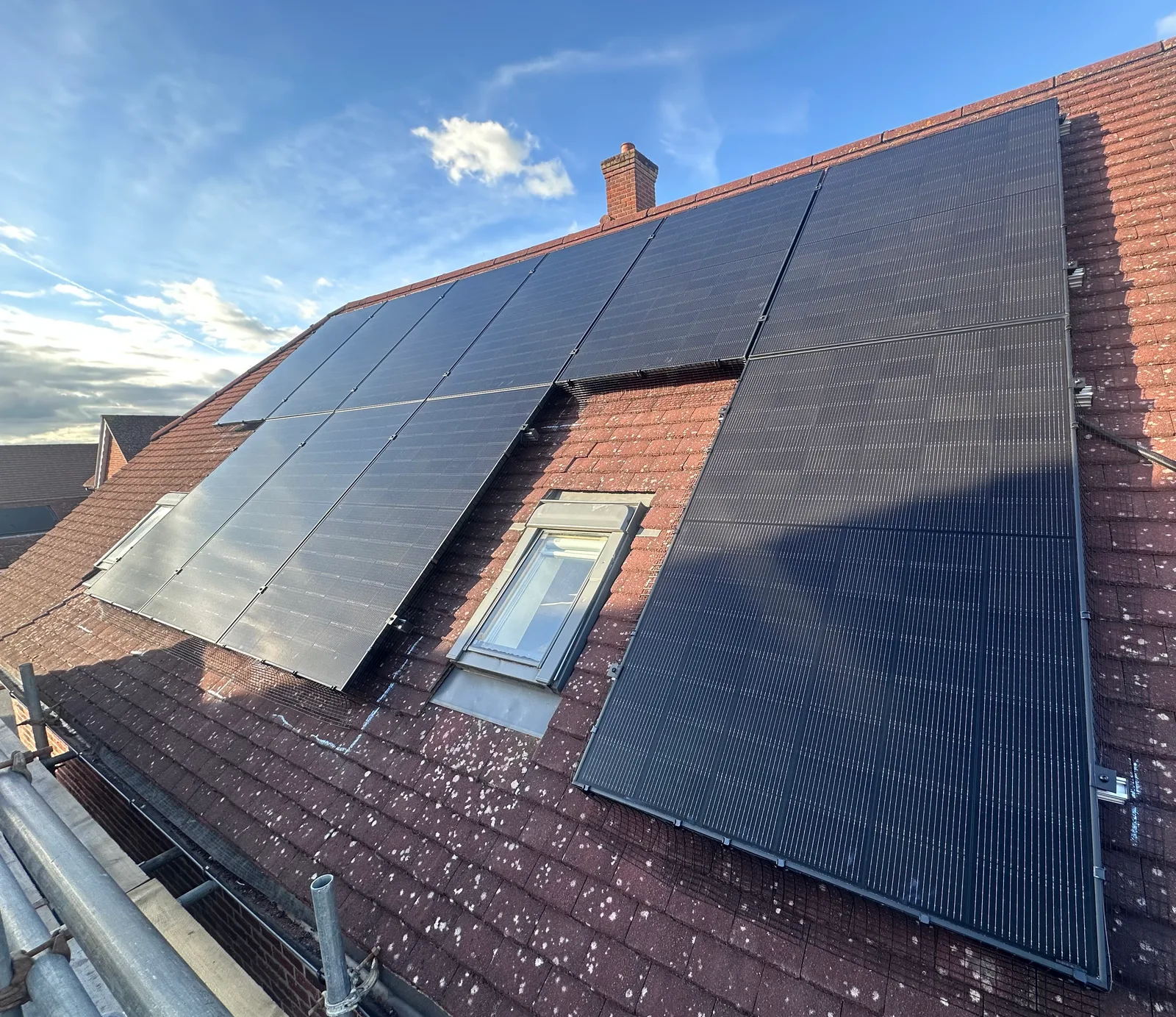

Energy On 24 fitted a 10-panel, 4.7kWp solar PV system to a tiled pitched roof in Thame. The panels are Hangdian Group MEGC Magnetics DM470G12RT-348HBB units at 470W each, connected to a single FoxESS F3600 G3 inverter.
Job details
| Completed | September 2026 |
|---|---|
| Location | Thame, Oxfordshire |
| Service | Solar PV installation |
| Panel count | 10 |
| Panel wattage | 470 W |
| Panel model | DM470G12RT-348HBB |
| Panel brand | Hangdian Group MEGC Magnetics |
| System size | 4.7 kW |
| Inverter brand | FoxESS |
| Inverter model | F3600 G3 |
| Inverter quantity | 1 |
| Roof type | Tile interface specified for light to medium tiles; roof hook material SUS304 stainless steel, e-clip AL6005-T5 |
| Scaffold required | Yes |

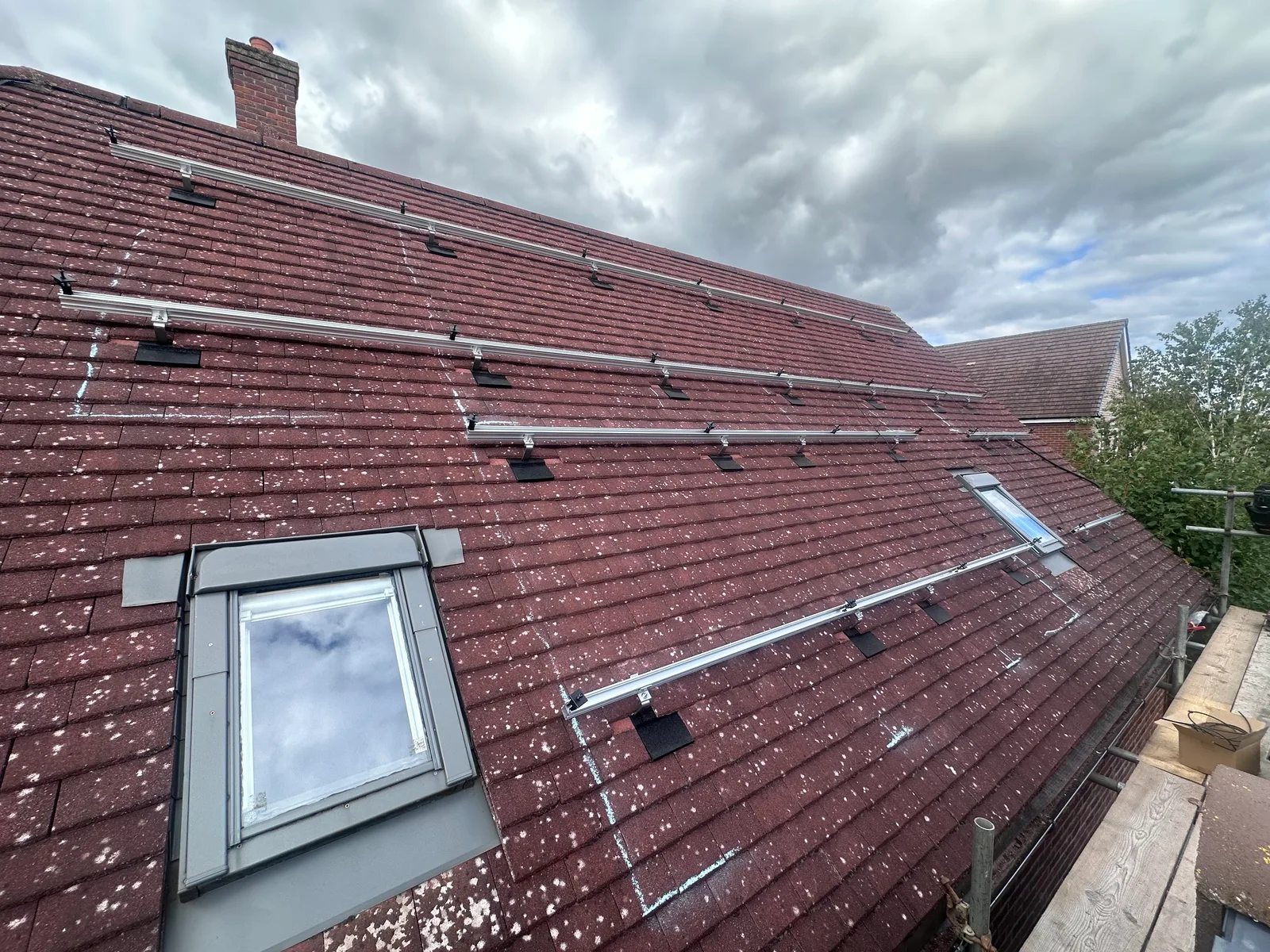

| Mounting hooks | Black tile hook brackets installed through lifted tiles at regular intervals along aluminium portrait rails |
| Roof orientation | Single pitched plane |
