6-panel all-black solar PV system with Pylontech battery storage, Leicester
Energy On 24 completed solar PV installation in Leicester in June 2024.

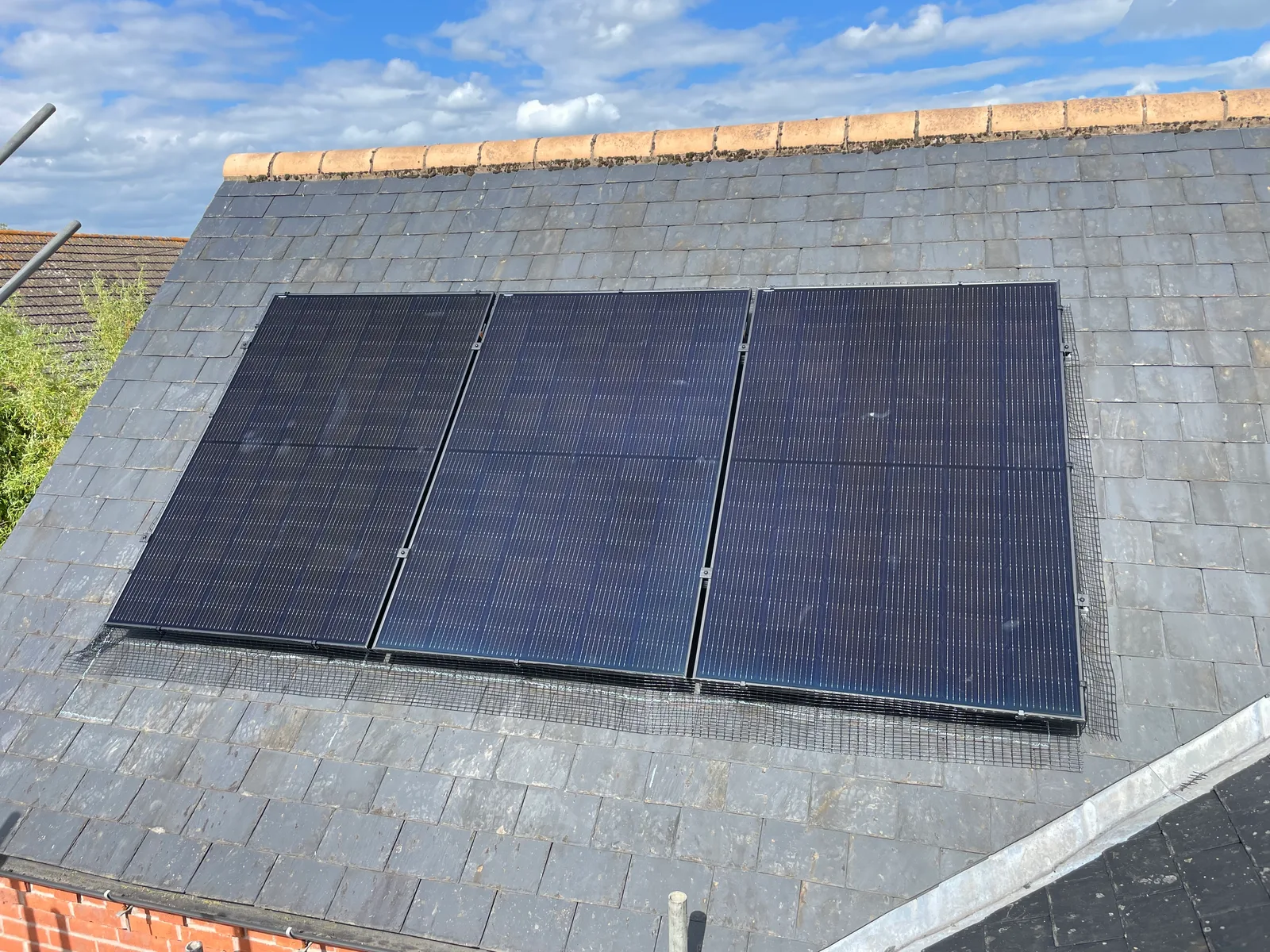

Energy On 24 installed a 6-panel solar PV system at a Leicester property in June 2024, pairing a Solis inverter with Pylontech US3000C and US1000C battery units housed in the loft.
Job details
| Completed | June 2024 |
|---|---|
| Location | Leicester |
| Service | Solar PV installation |
| Roof type | Pitched roof with natural slate tiles and terracotta half-round ridge tiles |

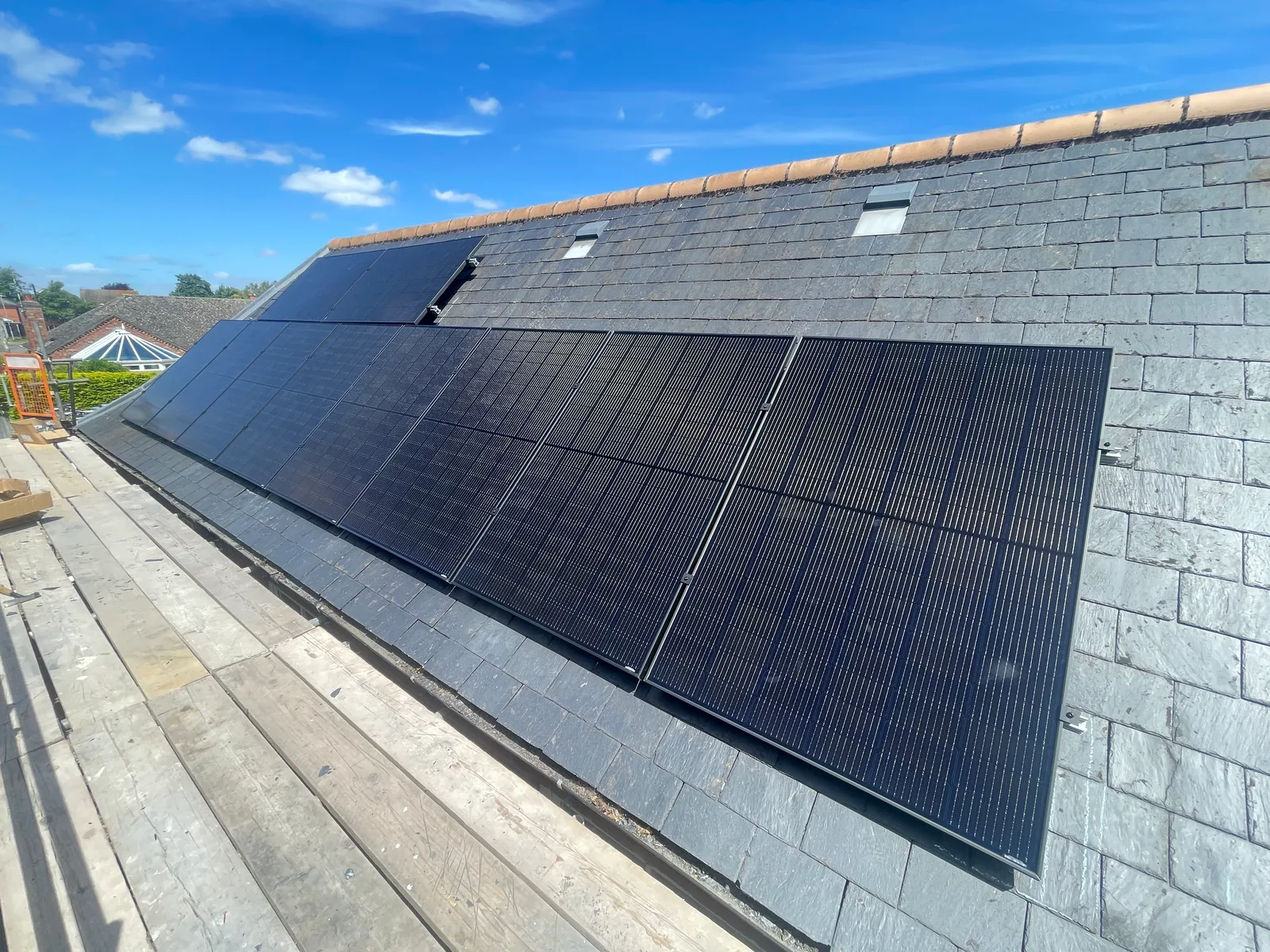

| Roof orientation | Two roof planes visible with panels installed on both |

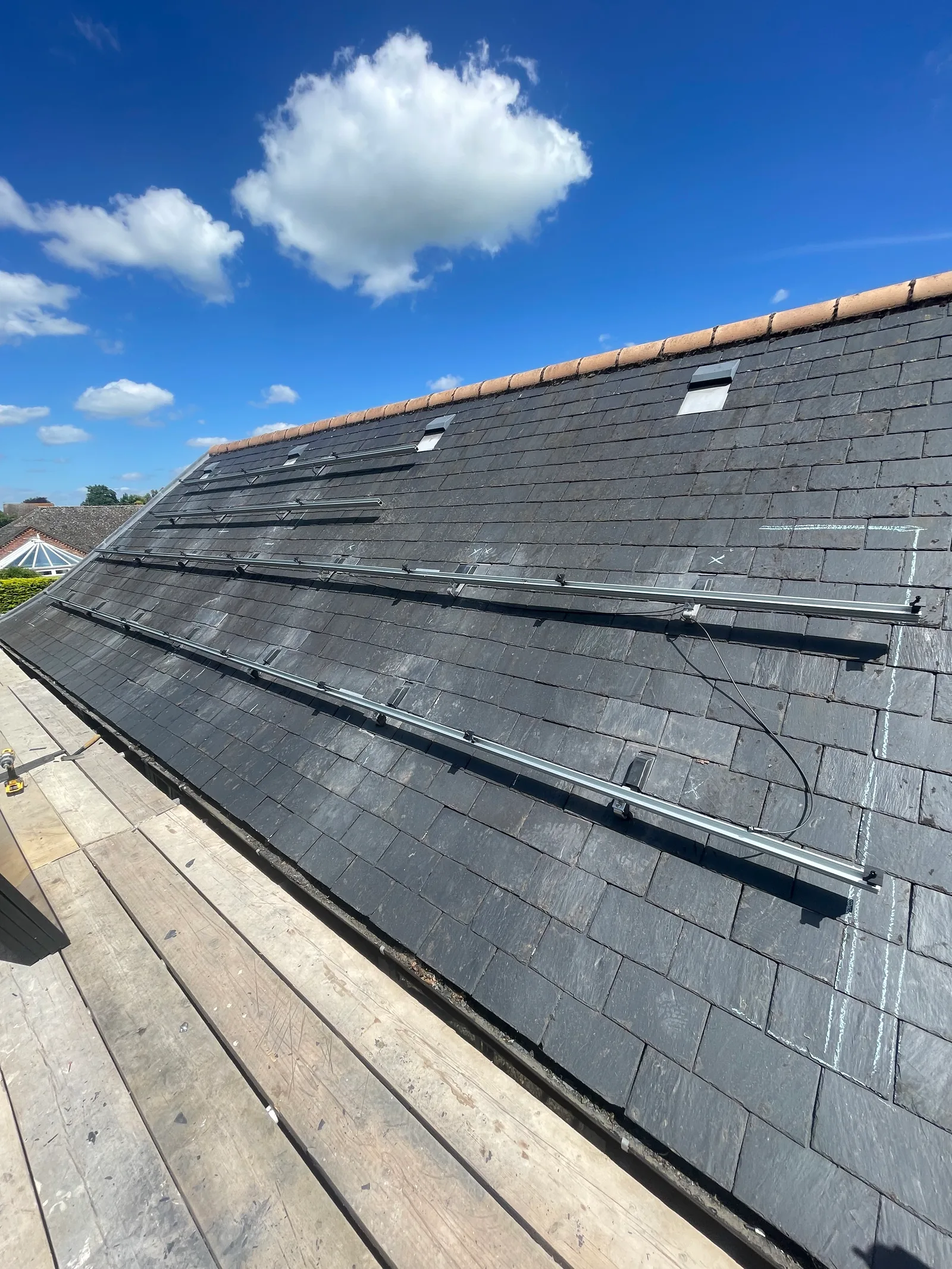

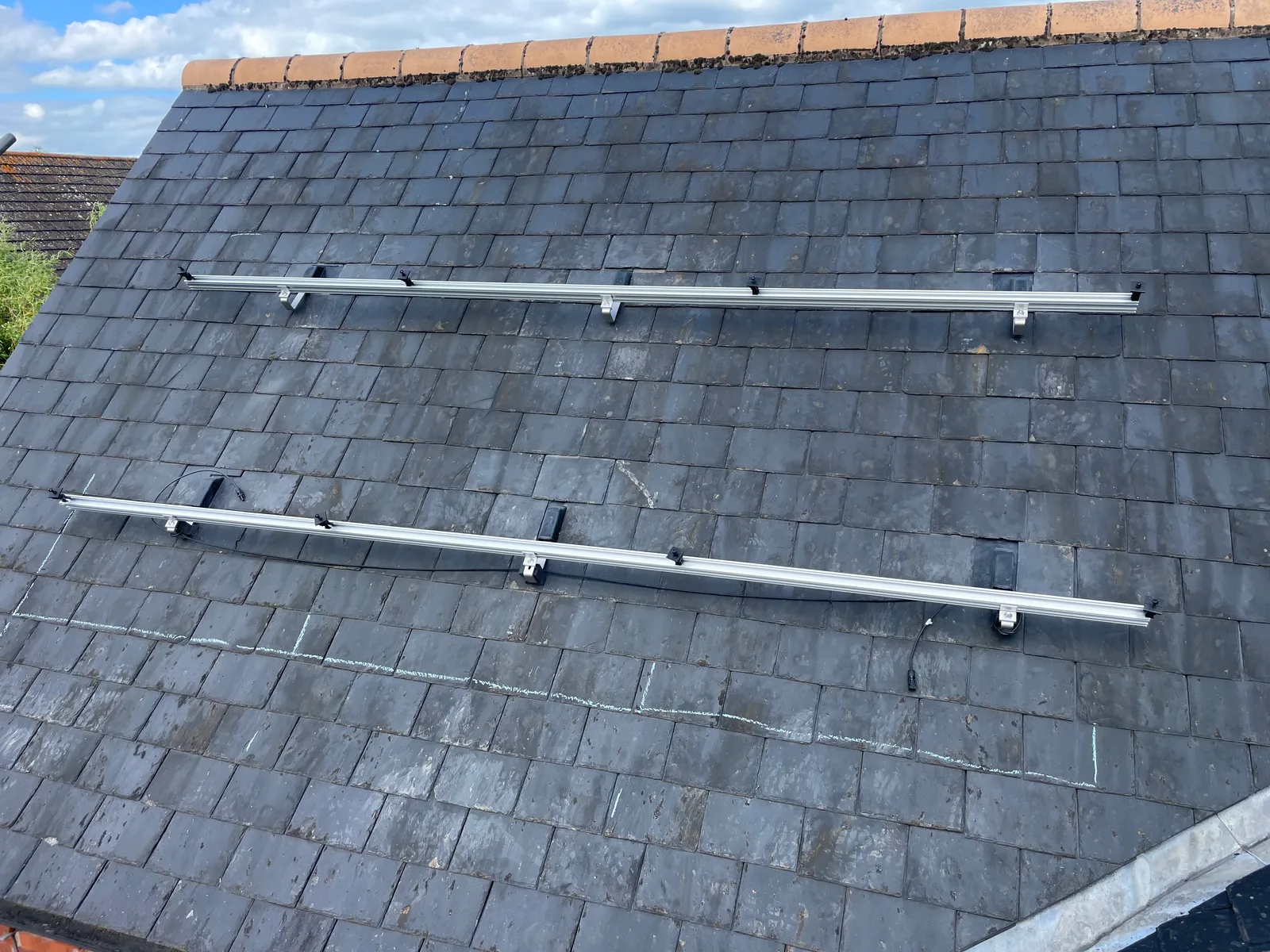

| Mounting hooks | Slate hooks lifting under slates and fixing into rafters, supporting horizontal aluminium portrait rails |
| Roof anchor type | Slate hook fixings penetrating under slate tiles into rafters |
| Panel count | 6 |
| Inverter brand | Solis |
| Inverter quantity | 1 |
| Battery brand | Pylontech |
| Battery model | US3000C and US1000C |

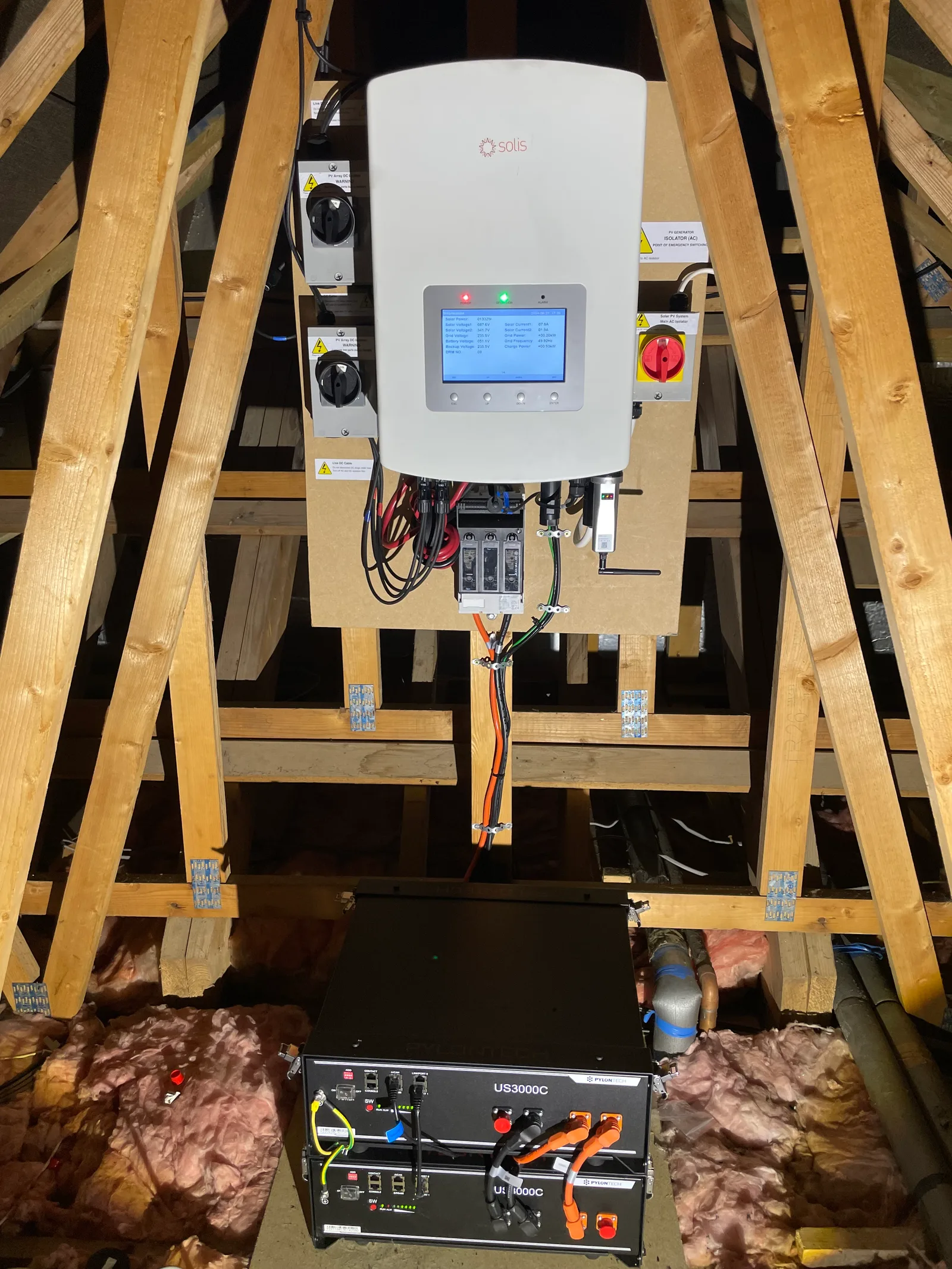

| Battery location | Loft space, floor level between roof trusses |
| Scaffold required | Scaffold boards at eaves level providing working platform |
